EP250 | EP275 | EP300 | EP325 | EP350 | EP375 | EP400
Foldable LED Screen
Embark on a journey of wonder with ONUMEN Sailing!
10-minute quick installation of our paper thin LED screen by 2 people in only 3 steps.
Applications with several scenes in all types of businesses and institutions.
The wisest option for all sizes of ultra thin LED screens.
EP250 | EP275 | EP300 | EP325 | EP350 | EP375 | EP400
Foldable LED Screen Video Show
EP250 | EP275 | EP300 | EP325 | EP350 | EP375 | EP400
Foldable LED Screen Highlights

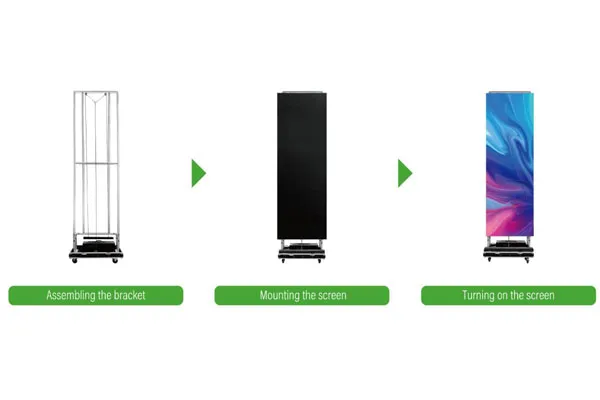

3 simple steps, a 10-minute installation by one person.

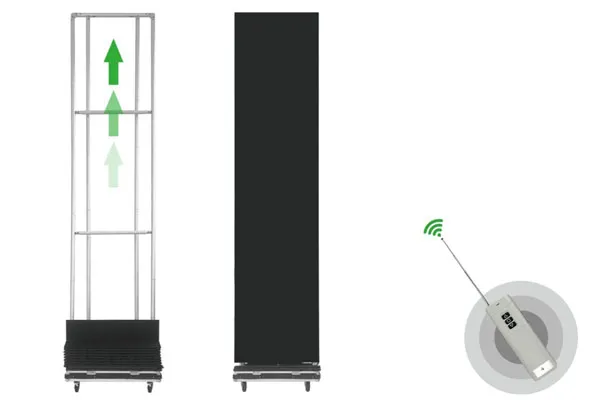

Remote control with a single touch for automated raising and lowering.
Portable and storage-friendly.

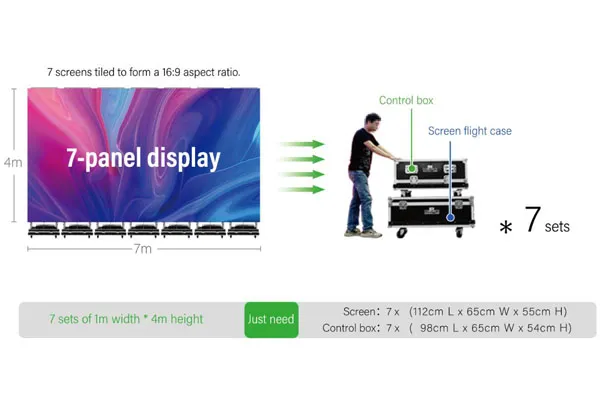

Saving time and resources, convenient storage and transit.

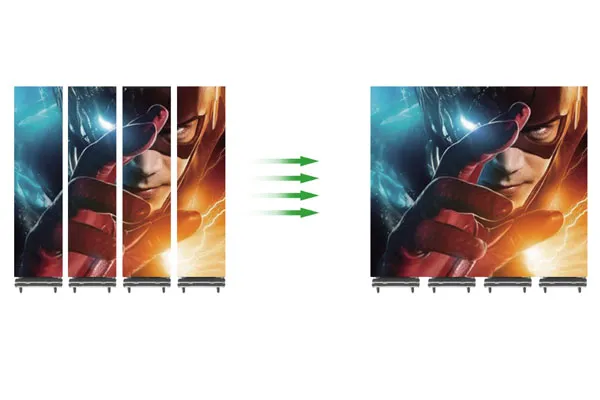

Fast installation of seamless LED video wall
All-in-one design without truss and counterweight
Details of EP250 | EP275 | EP300 | EP325 | EP350 | EP375 | EP400
Foldable LED Screen
| Application environment | Indoor | |
| Pixel pitch (mm) | 3.9 | 5.2 |
| IP rating | IP43 | IP43 |
| LED Type | SMD 1010 | SMD 1010 |
| Pixel Density (pixel/㎡) | 65536 | 65536 |
| Driving Mode | 1/16 | 1/16 |
| Gray Scale (bit) | 16 | 16 |
| Max Brightness (nits) | 800 | 800 |
| Max Refresh rate (Hz) (Hz) | 4000 | 4000 |
| Screen Thickness (mm) | 14 | 14 |
| Max Power Consumption (w/㎡) | 690 | 690 |
| Output Voltage (V) | DC24 | |
| Input Voltage (V) | AC100 ~ AC240 | |
| Module Size (W*H mm) | 250 * 250 | |
| Folding Angle | 360° | |
| Screen Size (W*H m) | 1 * 4 | |
| Screen Weight (kg/㎡) | 12 | |
| Certificate | ROHS FCC TUV CE | |
| Voltage | DC24V | |
| Current | 0.6A Max. | |
| Operation | Remote | |
| Lift Speed | 12 mm/s | |
| Case Size (L*W*H mm) | 985 * 655 * 560 | |
| Total Weight (kg) | 100 | |
