EP200 & EP225
Foldable LED Screen
Embark on a journey of wonder with ONUMEN Sailing!
5-minute quick installation by 1 person in only 3 steps!
Multi-scene applications in all kinds of enterprises and institutions!
The smartest choice for screens of all sizes!
EP200 & EP225 Foldable
LED Screen Video Show
EP200 & EP225
Thin Flexible Led Screen Highlights

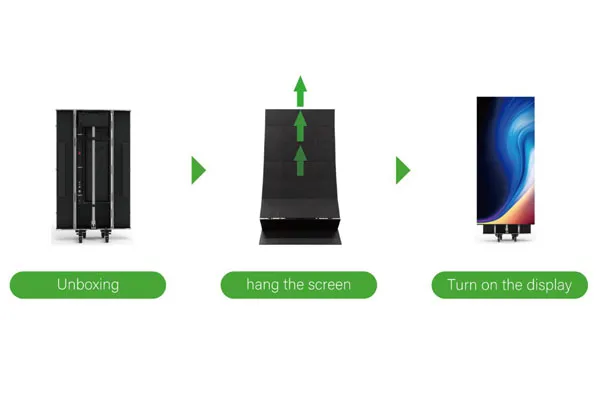

5-minute quick installation by 1 person in only 3 steps

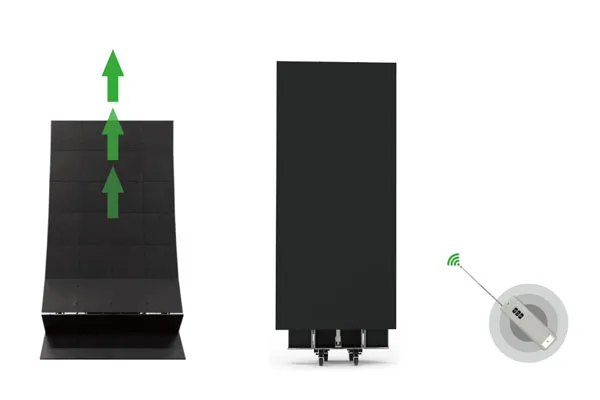

One-touch remote control for automatic lifting and lowering

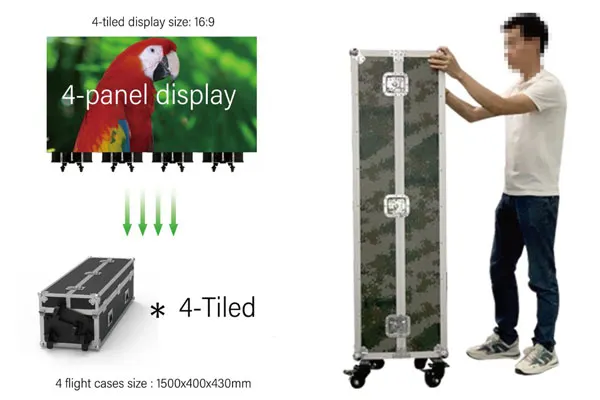

Portable and easy to storage
Time and energy saving, easy storage and transportation

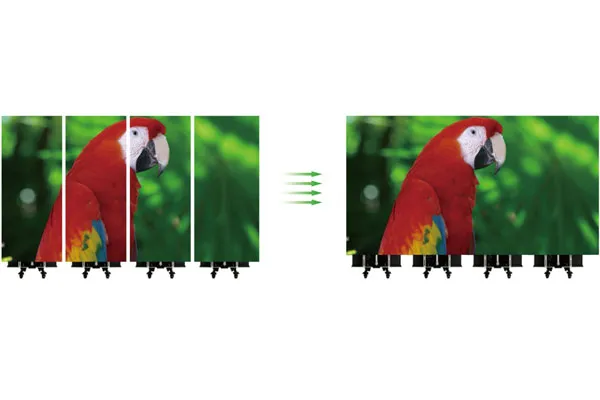

Fast installation of seamless LED Video Wall

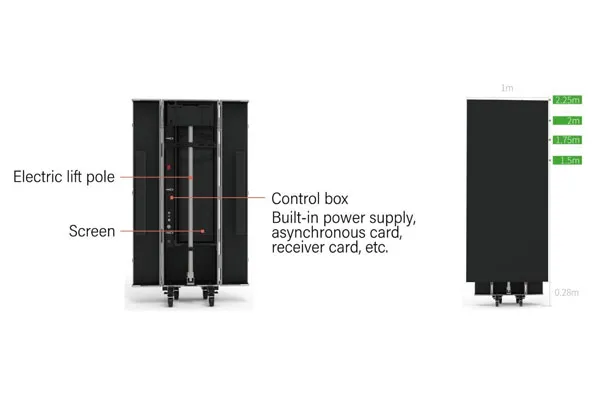

All-in-one design without truss and counterweight
| Application environment | Indoor | |||
| Pixel Pitch (mm) | 3.9 | 5.2 | ||
| IP Rating | IP43 | IP43 | ||
| LED Type | SMD 1010 | SMD 2020 | ||
| Pixel Density (pixel/㎡) | 65536 | 36864 | ||
| Driving Mode | 1/16 | 1/12 | ||
| Gray Scale (bit) | 16 | 16 | ||
| Max Brightness (nits) | 800 | 900 | ||
| Max Refresh rate (Hz) | 4000 | 5000 | ||
| Screen Thickness (mm) | 14 | 14 | ||
| Max Power Consumption (w/㎡) | 690 | 500 | ||
| Output Voltage (V) | DC48 | |||
| Input Voltage (V) | AC100-AC240 | |||
| Module Size (W*H mm) | 250 * 250 | |||
| Folding Angle | 360° | |||
| Screen Size (W*H m) | 1*2.25 | |||
| Screen Weight (w/㎡) | 11 | |||
| Certificate | TUV/ROHS/FCC/CE/CCC | |||
| Input Voltage | AC100~AC240V | |||
| Power Supply | RSP1000W-24 | |||
| Reciveing Card | Nova T1, Wifi, up to 650,000 pixels | |||
| Asynchrounous Card | Nova A4S | |||
| Asynchronous control max number of splicing screens (pcs) | 4 | 8 | 8 | 16 |
| Synchronous Card (optional) | Select a synchronous control system when the maximum number of splicing screens for asynchronous control is exceeded | |||
| Voltage | DC24V | |||
| Current | 0.6A MAX. | |||
| Operation | Remote | |||
| Lift Speed | 10 mm/s | |||
| Case Size (L*W*H mm) | 1510 * 440 * 400 | |||
| Total Weight (kg) | 75 | |||
